Pumps play a vital role in moving fluids across various applications, from water supply systems to industrial operations. Among the many pump types available, centrifugal pumps and multistage centrifugal pumps stand out for their versatility, efficiency, and broad range of use. Understanding how they work, their components, and where each type is most suitable can help in selecting the right pump for any system.

What is a Centrifugal Pump?

A centrifugal pump is a mechanical device designed to move fluids by converting rotational energy from a motor or engine into hydrodynamic energy of the fluid flow. It is one of the most widely used types of pumps due to its simple design and efficiency in handling a range of liquids.

Basic Principle of Operation

Centrifugal pumps operate on the principle of centrifugal force. When the pump's impeller rotates, it accelerates the fluid outward from the center (or eye) of the impeller to its periphery. As the fluid gains velocity, it is pushed into the pump casing, where the velocity energy is converted into pressure energy. This process creates a continuous flow of fluid from the inlet to the outlet.

Key Components

The main components of a centrifugal pump include:

• Impeller: The rotating part that imparts energy to the fluid.
• Casing: A housing that captures the fluid and directs it to the outlet.
• Suction and Discharge Nozzles: Entry and exit points for fluid flow.
• Shaft: Connects the impeller to the motor and transmits rotational energy.
• Seal or Packing: Prevents fluid leakage along the shaft.
• Bearings: Support the shaft and reduce friction during rotation.

Advantages and Disadvantages

Advantages:

• Simple design and easy installation
• Smooth and continuous flow
• Suitable for low to medium head applications
• Low initial and maintenance cost
• Compact and lightweight

Disadvantages:

• Limited ability to handle high-viscosity fluids
• Performance can be affected by changes in system pressure
• Susceptible to cavitation if operated improperly
• Not ideal for applications requiring high pressure or multiple pressure stages

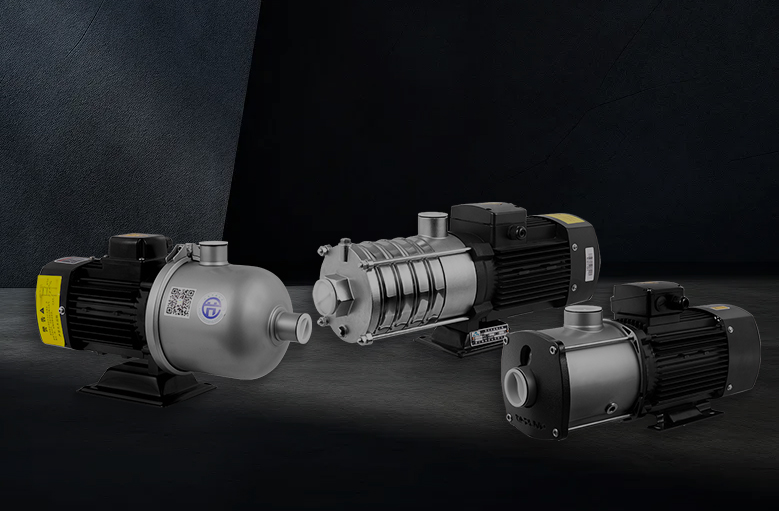

What is a Multistage Centrifugal Pump?

A multistage centrifugal pump is essentially a centrifugal pump with multiple impellers arranged in series within a single casing. Each impeller adds energy to the fluid, increasing the pressure incrementally with each stage. This design makes multistage pumps suitable for high-pressure applications.

Basic Principle of Operation

The working principle is similar to that of a standard centrifugal pump, but with one key difference: instead of a single impeller, the fluid passes through two or more impellers arranged in a sequence. As fluid moves through each stage, the pressure builds progressively. The total head developed by the pump is the sum of the heads generated by all individual impellers.

Key Components

In addition to the components found in standard centrifugal pumps, multistage pumps include:

• Multiple Impellers and Diffusers: Each impeller boosts pressure, while diffusers help convert velocity into pressure efficiently.
• Stage Casings or Chambers: Separate sections that house each impeller.
• Thrust Bearings: Handle axial forces created by multiple impellers.
• Balance Drum or Disk: Reduces axial thrust for improved reliability.

Advantages and Disadvantages

Advantages:

• Capable of generating high pressures
• Compact footprint for high-head applications
• Efficient over a wide range of operating conditions
• Ideal for systems requiring precise flow control

Disadvantages:

• More complex construction increases initial cost
• Requires more careful maintenance
• Sensitive to impurities in the fluid (requires clean fluids)
• Longer installation and repair times

Differences Between Centrifugal and Multistage Pumps

Understanding the distinctions between centrifugal pumps and multistage centrifugal pumps is essential when determining which pump type is best suited for specific system requirements. Although they share similar operating principles, their structural differences and performance characteristics make them suitable for different applications.

Design and Construction

The most apparent difference lies in their structural design:

• Centrifugal Pumps typically consist of a single impeller housed within a casing. The design is straightforward, with minimal components, which allows for compact size and easy installation. These pumps are often used in systems where moderate flow and head are sufficient.
• Multistage Centrifugal Pumps, on the other hand, have two or more impellers mounted on a single shaft or split across multiple shafts. These impellers are arranged in series, and each stage contributes additional pressure to the fluid. The design is more complex, resulting in a longer, more modular construction capable of handling significantly higher heads.

Performance Characteristics

Head and Flow Rate

• Centrifugal Pumps are ideal for applications requiring high flow rates at relatively low pressures. A single-stage pump can deliver a substantial volume of fluid efficiently but is limited in the pressure it can generate.
• Multistage Pumps excel in high-pressure applications. By combining the effect of multiple impellers, they can achieve significantly higher heads than single-stage centrifugal pumps while maintaining moderate flow rates.

Efficiency

• Single-stage centrifugal pumps are generally efficient for low to medium head applications but tend to lose efficiency when operating far from their best efficiency point (BEP).
• Multistage centrifugal pumps typically offer better efficiency across a broader range of pressures, especially in high-head systems. However, the complexity of the design can lead to slightly higher mechanical losses, which must be considered during system planning.

Applications

Due to their design and performance profiles, the applications for each pump differ:

• Centrifugal Pumps are widely used in everyday fluid handling scenarios where pressure demands are moderate and flow volume is a priority. They are commonly found in domestic water supply systems, general industrial processes, and HVAC systems.
• Multistage Centrifugal Pumps are favored in systems requiring high discharge pressure, such as boiler feed applications, high-rise building water supply, and pressure boosting in reverse osmosis systems.

Applications of Centrifugal Pumps

Centrifugal pumps are valued for their reliability and simplicity, making them a go-to solution for many fluid transport tasks. Their ability to handle large flow rates and relatively low maintenance needs makes them widely used across multiple sectors.

Water Supply

Centrifugal pumps are extensively used in municipal and residential water supply systems. Their ability to move large volumes of water at low to moderate pressure makes them ideal for:

• Domestic water distribution
• Pumping from wells and reservoirs
• Transferring water in municipal supply lines

These systems typically operate with relatively clean fluids, aligning well with the pump’s design.

Irrigation

In agricultural settings, centrifugal pumps are used to transport water for:

• Drip and sprinkler irrigation systems
• Flood irrigation
• Lifting water from canals, rivers, and groundwater sources

Their compatibility with variable flow rates and ease of integration with pipelines make them highly adaptable for field use.

Industrial Processes

Centrifugal pumps play a key role in general industrial applications such as:

• Chemical transfer
• Circulation of process fluids
• Cooling water systems
• Mild abrasive fluid handling (with proper material selection)

Industries like chemical processing, paper manufacturing, and food production rely on centrifugal pumps for their steady and efficient operation.

HVAC Systems

Heating, Ventilation, and Air Conditioning (HVAC) systems require reliable circulation of fluids such as chilled water or hot water. Centrifugal pumps are commonly installed to:

• Circulate water in cooling and heating loops
• Transfer fluids in centralized HVAC systems
• Maintain constant flow and pressure in large building networks

Their low noise levels and smooth operation make them suitable for indoor and commercial building applications.

Applications of Multistage Centrifugal Pumps

Multistage centrifugal pumps are designed to produce high pressure and maintain stable operation under demanding conditions. Their construction allows them to thrive in complex and high-demand applications.

Boiler Feed Water

One of the most common uses of multistage pumps is in feeding water into high-pressure boilers. These systems require pumps that can overcome substantial pressure to:

• Supply pressurized water to industrial boilers
• Maintain continuous feed during varying load demands
• Operate under high-temperature conditions (with proper materials and seals)

Power plants, chemical plants, and manufacturing facilities often use multistage pumps in their boiler systems.

High-Pressure Cleaning

Multistage pumps are suitable for applications that demand pressurized water for cleaning, including:

• Industrial equipment cleaning
• Surface preparation
• Sanitation processes in food and pharmaceutical industries

The ability to deliver high-pressure streams allows for effective and controlled cleaning without the need for additional pressure-boosting devices.

Reverse Osmosis

In water treatment systems, particularly reverse osmosis (RO), multistage pumps are essential for:

• Pressurizing feedwater to pass through semi-permeable membranes
• Providing consistent flow and pressure for continuous operation
• Supporting desalination and ultrapure water generation

These pumps must maintain high pressure with precision, making multistage centrifugal pumps a fitting choice.

Oil and Gas Industry

Multistage centrifugal pumps are used in upstream and midstream oil and gas operations for:

• Transferring condensate and other hydrocarbons
• Pipeline pressure boosting
• Injection of high-pressure water for enhanced oil recovery

Their high efficiency and modular design support the reliability required in critical process systems.

Selecting the Right Pump

Choosing between a centrifugal pump and a multistage centrifugal pump depends on multiple factors. Understanding your system’s specific needs will help ensure reliable performance, energy efficiency, and cost-effectiveness over time.

Factors to Consider

Flow Rate and Head Requirements

• Flow rate refers to the volume of fluid the pump needs to move, while head refers to the pressure or height the fluid must be lifted.
• Centrifugal pumps are better suited for applications requiring high flow but low to moderate head.
• Multistage pumps are preferred when a high head is required, even if the flow rate is moderate.

Example: A municipal water supply line requiring large volumes at low pressure may use centrifugal pumps, while a high-rise building water supply system may need multistage pumps to overcome vertical lift.

Fluid Properties

The physical and chemical characteristics of the fluid also influence pump selection:

• Clean water or low-viscosity fluids are suitable for both pump types.
• Multistage pumps are more sensitive to impurities or abrasive particles, which can cause wear in multiple impeller stages.
• If the fluid contains solids or is highly viscous, specialized single-stage pumps or alternative technologies may be more appropriate.

System Design

The layout and complexity of the piping system affect the required pump characteristics:

• For simple systems with short distances and minimal vertical lift, a centrifugal pump offers an economical and efficient choice.
• For complex systems with long pipelines, elevation differences, or varying pressure zones, multistage centrifugal pumps provide better control and stability.

Efficiency and Cost

• Initial cost: Centrifugal pumps generally have lower upfront costs and simpler installation.
• Operating cost: Multistage pumps, though more expensive initially, can provide better energy efficiency in high-pressure applications, reducing long-term costs.
• Maintenance: Simpler designs of centrifugal pumps mean easier maintenance, while multistage pumps may require more frequent inspection of internal stages.

Common Issues and Troubleshooting

Like any mechanical equipment, pumps can encounter operational problems. Understanding common issues helps in diagnosing and resolving problems early, minimizing downtime.

Cavitation

Cavitation occurs when pressure in the pump inlet drops below the vapor pressure of the fluid, causing vapor bubbles to form and collapse within the pump. This leads to:

• Excessive noise and vibration
• Damage to impeller surfaces
• Reduced efficiency and flow

Solutions: Ensure adequate NPSH (Net Positive Suction Head), avoid excessive suction lift, and reduce inlet restrictions.

Overheating

Pump overheating may result from:

• Running the pump with a closed discharge valve
• Operating outside the recommended flow range
• Inadequate cooling of the motor or bearings

Solutions: Operate within the manufacturer’s specified parameters, allow for proper ventilation, and ensure continuous flow through the pump.

Seal Failures

Mechanical seals or packing are critical for preventing leakage. Failures can occur due to:

• Improper installation
• Excessive pressure or temperature
• Abrasive or corrosive fluids

Solutions: Use seals suited to fluid properties, perform regular inspections, and replace worn components promptly.

Maintenance and Care

Regular maintenance is essential to keep both centrifugal and multistage centrifugal pumps operating efficiently and to extend their service life. Proactive care helps reduce downtime, prevent unexpected failures, and maintain consistent performance.

Regular Inspection

Routine visual and operational checks can reveal early signs of wear or malfunction. Regular inspection should include:

• Checking for leaks at seals, flanges, and joints
• Observing for abnormal vibration or noise
• Monitoring discharge pressure and flow rate for consistency
• Inspecting for rust, corrosion, or contamination

In multistage pumps, it's especially important to check all stages and balance mechanisms for alignment and wear.

Lubrication

Proper lubrication ensures smooth operation of bearings and moving parts:

• Follow the manufacturer’s schedule for greasing or oiling bearings.
• Use lubricants compatible with the operating environment and temperature range.
• Over-lubrication or contamination can lead to bearing failure, so apply carefully and in the correct quantity.

For multistage pumps with multiple bearings or thrust balancing devices, ensure each lubrication point receives attention.

Preventative Maintenance

Implementing a preventative maintenance program can significantly reduce the risk of failures. This includes:

• Scheduled servicing based on operating hours or performance thresholds
• Replacement of consumables such as seals, gaskets, and bearings at regular intervals
• Cleaning of filters and strainers to maintain proper fluid flow and protect internal parts
• Alignment checks between the pump and motor to avoid shaft misalignment and premature wear

Using vibration monitoring and thermography tools can help detect hidden mechanical issues before they escalate.

Conclusion

Summary of Key Differences and Applications

Centrifugal and multistage centrifugal pumps each serve unique roles in fluid handling systems:

• Centrifugal pumps are best for low to medium pressure applications where high flow is required. They offer simplicity, cost-effectiveness, and broad applicability—from irrigation and domestic water supply to industrial processing and HVAC systems.
• Multistage centrifugal pumps are built for high-pressure duties with stable and efficient performance. They are ideal for applications such as boiler feed systems, reverse osmosis, and pressure boosting in complex industrial and commercial systems.

Understanding the distinctions in design, performance, and application is key to selecting the right pump type.

Future Trends in Pump Technology

As industries evolve, pump technology is adapting to meet higher efficiency standards and more demanding operational needs:

• Smart pumps with built-in sensors for real-time monitoring and predictive maintenance
• Variable frequency drives (VFDs) for energy-efficient speed control
• Improved materials for corrosion and wear resistance in harsh environments
• Modular pump systems allowing easier upgrades and servicing

These trends point toward greater energy savings, improved reliability, and reduced environmental impact—helping users optimize fluid management systems for the future.
